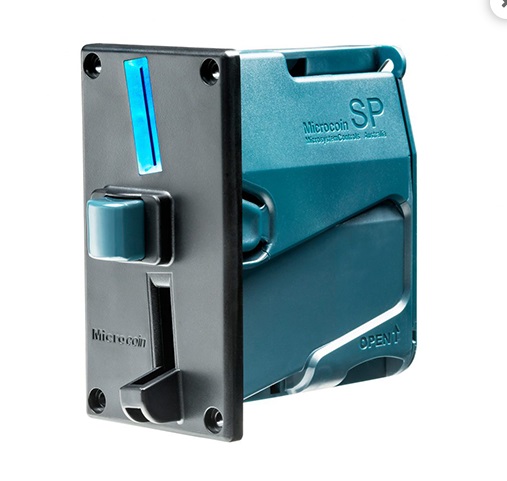

SQUARE SPHERICAL OPENING 0V3719 | | VITRO S1 LOWER FRONT MOULDING / MPN - 42933691 | | Microcoin SP115 COIN VALIDATOR Standard faceplate
The Microcoin SP coin acceptor is a high speed, multi-coin validator, capable of accepting coins up to 6 coins per second. It is packed with features including on-board programming. It can accept up to 12 different coins or tokens at speed without compromising the operation of the validator. Coupled with comprehensive software support packages, the Microcoin SP provides a modern solution which can be maintained in-house. The Microcoin SP155 has its own 115mm high, illuminated faceplate, offering a modern, stylish appearance to any machine.
Compatible with Most Vending Machines., MDB Connection. Contact us for more information and unique quote.
Specification
Acceptance Rate
Up to 6 cps
Coin Diameter
17mm to 30mm
Coin Thickness
1.2mm to 3.3mm
Coin Output
6 parallel NPN open collector outputs, 200mA
Pulse Width
Programmable
Credit
NPN open collector credit/accumulator/totaliser
Interfaces
Pulse, parallel, ccTalk interfaces
Faceplate
155mm standard and illuminated faceplate
Amusement “pinball” style faceplate
Wake-up sensor for low power applications
Power Supply
Standard 12Vdc +/- 10%
Carwash 24VAC via interface
Environmental
Operating temp : 0C to 55C
Storage temp : -10C to 65C
Humidity : Up to 90% R.H., non-condensing
Programming
PC based SPTools programming and diagnostics s/w
find out more |

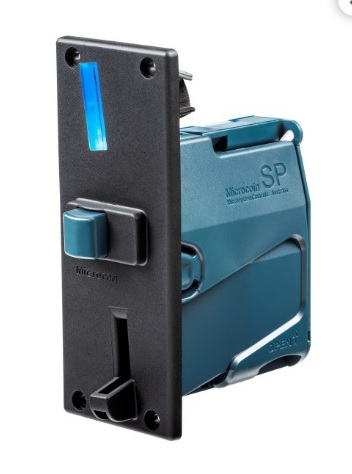

Microcoin SP155 COIN VALIDATOR Illuminated faceplate
Microcoin SP155
The Microcoin SP coin acceptor is a high speed, multi-coin validator, capable of accepting coins up to 6 coins per second. It is packed with features including on-board programming. It can accept up to 12 different coins or tokens at speed without compromising the operation of the validator. Coupled with comprehensive software support packages, the Microcoin SP provides a modern solution which can be maintained in-house. The Microcoin SP155 has its own 115mm high, illuminated faceplate, offering a modern, stylish appearance to any machine.
Compatible with Most Vending Machines., MDB Connection. Contact us for more information and unique quote.
Specification
Acceptance Rate
Up to 6 cps
Coin Diameter
17mm to 30mm
Coin Thickness
1.2mm to 3.3mm
Coin Output
6 parallel NPN open collector outputs, 200mA
Pulse Width
Programmable
Credit
NPN open collector credit/accumulator/totaliser
Interfaces
Pulse, parallel, ccTalk interfaces
Faceplate
155mm standard and illuminated faceplate
Amusement “pinball” style faceplate
Wake-up sensor for low power applications
Power Supply
Standard 12Vdc +/- 10%
Carwash 24VAC via interface
Environmental
Operating temp : 0C to 55C
Storage temp : -10C to 65C
Humidity : Up to 90% R.H., non-condensing
Programming
PC based SPTools programming and diagnostics s/w
